Carbon Dioxide Gas Typе

Available in Multiple Capacities from 2 kg to 4.5 kg

Carbon Dioxide Gas Typе

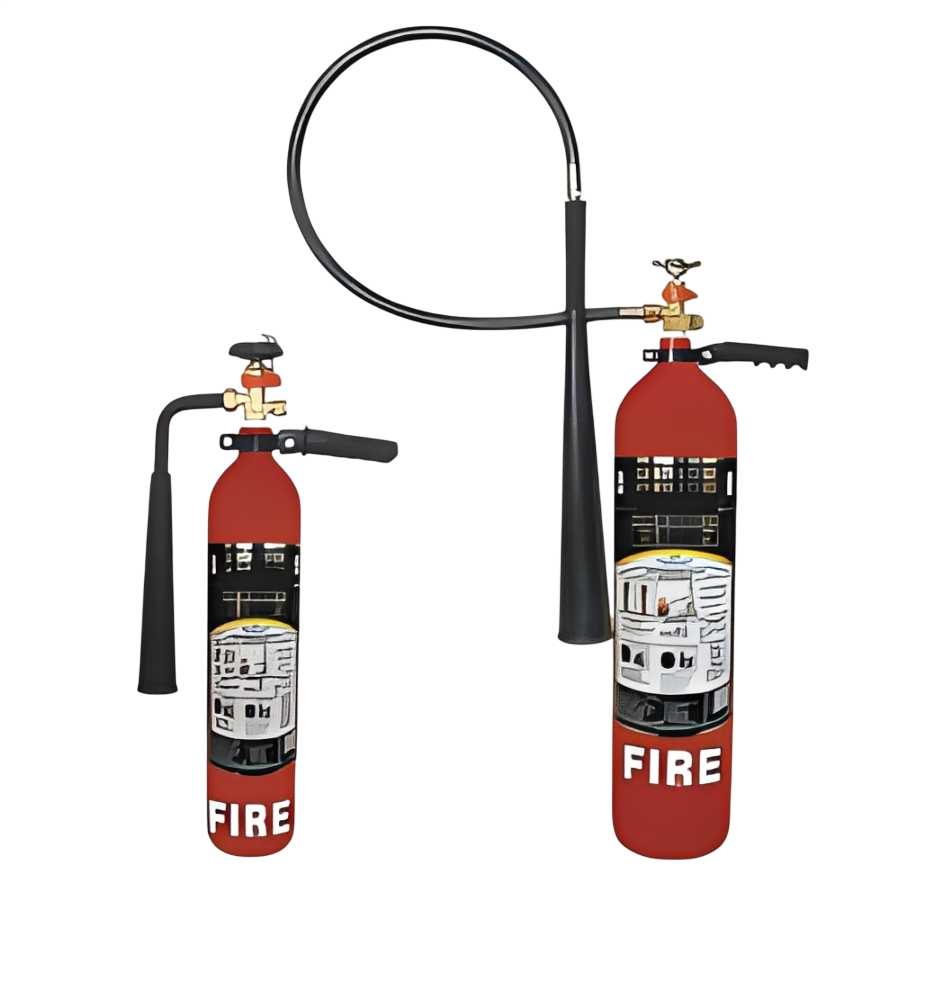

The Carbon Dioxide (CO₂) Type Fire Extinguisher from Krunal Engineering Works is a premium fire safety solution specifically designed for high-risk electrical and flammable liquid environments. Since CO₂ is a non-conductive and non-corrosive gas, it is the preferred choice for protecting sensitive electronic equipment, server rooms, and laboratory settings. Its ability to extinguish fires without physical contact makes it indispensable for modern industrial infrastructure. Built with a high-pressure mild steel body and engineered to meet rigorous ISI standards (IS 15683), this extinguisher works by displacing the oxygen that a fire needs to burn while simultaneously cooling the fuel source. This dual-action approach ensures rapid suppression of flames. The heavy-duty construction is designed to contain the gas under high pressure safely, ensuring the unit is ready for immediate deployment during an emergency.

One of its greatest advantages is that it leaves zero residue, eliminating the need for extensive cleanup and preventing secondary damage to the delicate internal components of machinery or computers. Unlike powder-based extinguishers, which can ruin circuitry, the CO₂ gas simply dissipates into the air after use. This "clean" characteristic is vital for businesses that cannot afford the downtime associated with equipment contamination or water damage. The unit operates efficiently even in extreme temperatures, ranging from -20°C to +55°C, ensuring total reliability in both cold storage facilities and high-heat industrial zones. Available in standard portable capacities like 2 kg and 4.5 kg, these extinguishers provide a minimum 85% effective discharge efficiency. This makes them a powerful and dependable tool for rapid fire suppression in specialized environments where precision and cleanliness are top priorities.

Technical Specification

TECHNICAL SPECIFICATION (CO2 TYPE)
Approval ISI Marked as per IS 15683
Body Mild Steel
Type Constant Pressure
Extinguishing Media Carbon Di Oxide
Propellent CO2
Hydraulic Test Pressure 250 kgf / cm2
Service Pressure 60 to 70 kgf / cm2
Operating Temperature -20°C to +55°C
Min. Effective Discharged 85%
Capacity 2 kg 4.5 kg
Fire Rating 8B 21 B
Discharge Time Min. 13 S Min. 13 S
Discharge Range 2 Mtr. 3 Mtr.

Applications

Designed for multiple applications across different sectors, including:

Get in touch
Server Rooms & Data Centers

It protects expensive networking hardware and servers without risking the residue-related short circuits caused by powder extinguishers.

Electrical Panels & Switchgear

This is the preferred choice for tackling live electrical fires in switchgear rooms, transformers, and control panels.

Laboratories

It safely suppresses fires involving delicate scientific instruments, MRI machines, and sensitive chemical reagents.

Office Environments

Highly suitable for modern workplaces with high concentrations of computers, printers, and electronic infrastructure.

For any queries regarding our fire safety products, please write to us at fireteks@gmail.com

Frequently asked questions.

The extinguisher operates at a service pressure of 15 kgf/cm² and is tested at a hydraulic pressure of 35 kgf/cm².

Yes. Extinguishers like the Carbon Dioxide Gas Type are engineered to meet ISI standards (IS 15683), ensuring they meet national safety and performance benchmarks for industrial use.

Yes, it is the preferred choice. Because it is non-conductive and leaves zero residue, it won't short-circuit neighboring servers or leave a messy powder that ruins expensive hardware.

Unlike water or powder units, the internal pressure of CO₂ depends entirely on the surrounding temperature. A gauge would constantly fluctuate, making it unreliable. The only way to check the content is by weight.
