Clean Agent Moduler Type

Available in Multiple Capacities from 2 kg to 15 kg

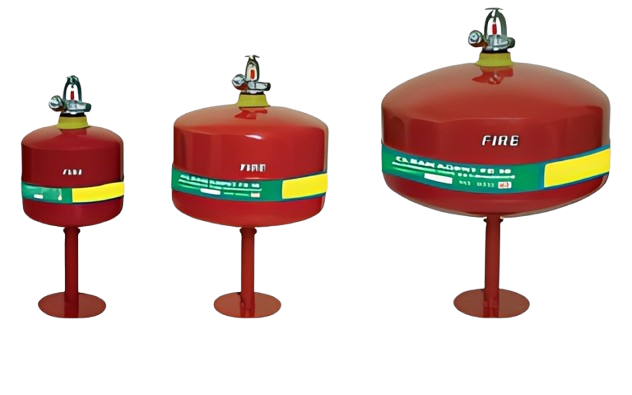

Clean Agent Moduler Type

The Clean Agent Modular Type Fire Extinguisher from Krunal Engineering Works is an advanced, automatic fire suppression system designed for high-value assets. Engineered for rapid response, this modular unit is ceiling-mounted and activates automatically when ambient temperatures reach a specific threshold. It utilizes premium clean agents like HFC227ea or FK-5-1-12, which are non-conductive, non-corrosive, and leave absolutely no residue behind after discharge.

Because it requires no clean-up, it is the ideal choice for environments housing sensitive electronics and critical data. Built with a durable mild steel body and tested at a hydraulic pressure of 35 kgf/cm², this system ensures maximum reliability and safety for localized fire protection. These modular units offer wide area protection, covering up to 10 square meters depending on the model. They are designed to be hung vertically above potential fire risks at heights of 1.5 to 3 meters, providing an automatic safety shield for server rooms, telecommunication centers, laboratories, and high-tech industrial spaces where traditional water or powder-based systems could cause irreparable damage.

Inquire now

Technical Specification

FEATURES & PERFORMANCE
Capacity 2 kgs. 5 kgs. 10 kgs. 15 kgs.
Working Pressure in kgs / cm2 7 to 15 7 to 15 7 to 15 7 to 15
Propellent Nitrogen Nitrogen Nitrogen Nitrogen
Area Protection in m2 1 - 1.5 3.5 - 4 7 - 8 8 - 10
Hanging vertically above risk 1.5 m 1.5 - 2 m 1.75 - 2.3 m 2 - 3 m
Operation time in second 8 - 10 10 - 15 15 - 20 18 - 23

Applications

Designed for multiple applications across different sectors, including:

Get in touch
Data Centers & Server Rooms

Protects critical IT infrastructure and prevents data loss without leaving residue on circuitry.

Laboratories & Medical Facilities

Safeguards sensitive diagnostic equipment, MRI rooms, and cleanroom environments.

Control Rooms

Used in power plants and industrial control centers to protect electrical panels and consoles.

Banks & Record Rooms

Provides a dry, safe way to protect physical documents and currency storage.

For any queries regarding our fire safety products, please write to us at fireteks@gmail.com

Frequently asked questions.

How does the Clean Agent Modular Type activate automatically?

The unit features a heat-sensitive glass bulb sprinkler head. When the temperature in the room reaches a pre-set limit (usually 68°C), the bulb bursts, automatically discharging the clean agent directly over the fire risk.

No. One of the biggest advantages of this system is that the gas evaporates completely. There is no powder, water, or foam to clean up, allowing your operations to resume almost immediately after the fire is out.

For maximum effectiveness, these units should be mounted vertically above the risk at a height between 1.5 meters to 3 meters, depending on the capacity (2kg to 15kg).

A single unit can protect an area ranging from 1.5 to 10 square meters. For larger rooms, multiple modular units are typically installed in a grid pattern to ensure total coverage.
